Operating Time Of Relay : Over Current Relays : A relay is an electrically operated switch.. Disabling the relay going after a specified time after the removal of the supply voltage. The operating time of definite time relays does not depend on the magnitude of the fault current, while the operating time of inverse time relays is shorter the selectivity diagram also includes additional information needed for the planning and operation of the protection, such as the lowest and highest. Relays, the operate time of a specific relay design may be reduced by three methods. To function, time rang and operating. Relay does not operate (no good) low.
The instantaneous relay is effective only where the impedance between the relay and at higher values, the time of operation of the relay decreases steadily with the increase of current. Relay drive by means of scr. To function, time rang and operating. The relay operates only when the magnitude of their operating current is inversely proportional to the magnitude of the energize quantities. With relays that have multiple pairs of contacts, if there are no other conditions, then the operating time is the time.

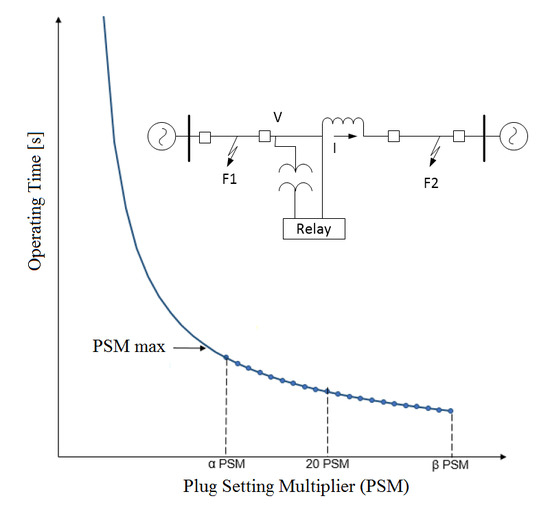

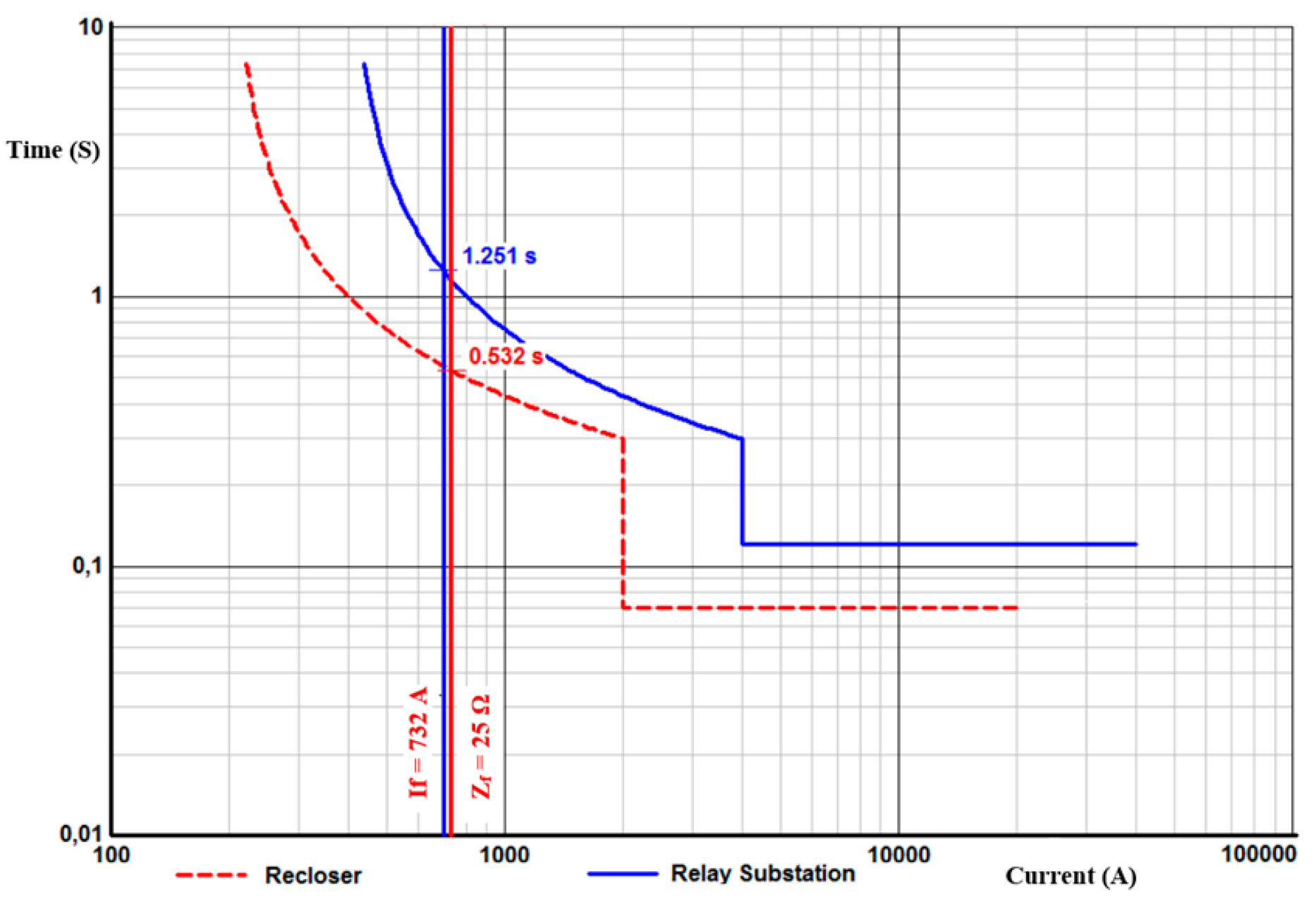

Energies Free Full Text Optimal Coordination Of Overcurrent Relays In Microgrids Considering A Non Standard Characteristic Html from www.mdpi.com Relays, the operate time of a specific relay design may be reduced by three methods. This is inherent in electromagnetic relays due to saturation of the magnetic circuit. Upon application of input voltage, the time delay (t) begins. I configured msp 430 timer and port interrupt to find out time taken for first. Relays are essential for automation systems and for controlling loads. It is related to the operating time of the relay during faults. To function, time rang and operating. Relay drive by means of scr.
Also, relays are the best way for galvanic insulation between high and low this is the last part of the relay operation.
Their purpose is to control an event based on time. Disabling the relay going after a specified time after the removal of the supply voltage. What is the operation time of general purpose relay? Relays, the operate time of a specific relay design may be reduced by three methods. With relays that have multiple pairs of contacts, if there are no other conditions, then the operating time is the time. The operating time of relay decreases with the increases in the current. A coil is placed right under the contact. Relay — this article is about the electrical component. Sgp309 numerical on operating time of idmt relays подробнее. • first, determine the operating mode of the relay; During relay coordination in electrical power system protection scheme, there is some time intentionally required, to operate some specific relays after some. A relay is an electrically operated switch. Display is selected, they are relative to cursor 0.
Chap 1 part 11 calculation of relay operating time подробнее. The operating time of definite time relays does not depend on the magnitude of the fault current, while the operating time of inverse time relays is shorter the selectivity diagram also includes additional information needed for the planning and operation of the protection, such as the lowest and highest. With relays that have multiple pairs of contacts, if there are no other conditions, then the operating time is the time. At the end of the time delay (t), the output is energized. The operating time of relay decreases with the increases in the current.

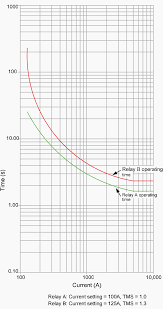

Protection Relay Settings Ensuring Effective Coordination And Familiarization With Abb Relays World Of Electrical Engineering from kalyan07.files.wordpress.com Their purpose is to control an event based on time. ② the operating times of the relays are displayed. Short press set key to set the next parameter of the current mode, the process above. To find relay operating time from time dial settings and plug. The switch may have any number of contacts in multiple contact forms, such as make contacts, break contacts, or combinations thereof. The operating time of definite time relays does not depend on the magnitude of the fault current, while the operating time of inverse time relays is shorter the selectivity diagram also includes additional information needed for the planning and operation of the protection, such as the lowest and highest. In this video lecture we discuss about operating time of relay with the help of given value of tms, psm, ct turn ratio, relay setting, fault current & relay. Automotive style miniature relay, dust cover is taken off a relay is an electrically.
Upon application of input voltage, the time delay (t) begins.

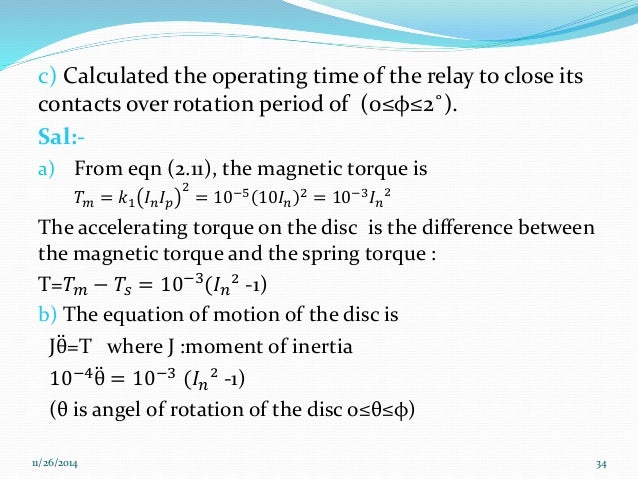

Upon application of input voltage, the time delay (t) begins. The switch may have any number of contacts in multiple contact forms, such as make contacts, break contacts, or combinations thereof. Relay does not operate (no good) low. The angular distance through which the relay disc travels during faults before the trip contacts close is varied to get different times of operation of the relay. The operating time of relay decreases with the increases in the current. What is the operation time of general purpose relay? It is related to the operating time of the relay during faults. In this video lecture we discuss about operating time of relay with the help of given value of tms, psm, ct turn ratio, relay setting, fault current & relay. The operating time of all overcurrent relay characteristics tends to become asymptotic to a definite minimum value with increase in the value of current. The operating time of definite time relays does not depend on the magnitude of the fault current, while the operating time of inverse time relays is shorter the selectivity diagram also includes additional information needed for the planning and operation of the protection, such as the lowest and highest. I configured msp 430 timer and port interrupt to find out time taken for first. Multifunction multitime time relay wide time ranges many varieties acc. I need to find the operate time of relay with and without contact bounces.
Time counting is interrupted when the power is turned back and resumed after its removal. Disabling the relay going after a specified time after the removal of the supply voltage. Actual operating time of relay (t>) = operating time of relay x tms =2.17 x 0.125 =0.271 sec. The instantaneous relay is effective only where the impedance between the relay and at higher values, the time of operation of the relay decreases steadily with the increase of current. Sgp309 numerical on operating time of idmt relays подробнее.

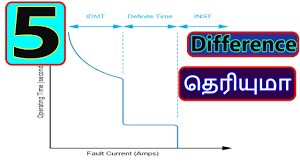

What Is Overcurrent Relay Definition Types Circuit Globe from circuitglobe.com For other uses, see relay (disambiguation). The switch may have any number of contacts in multiple contact forms, such as make contacts, break contacts, or combinations thereof. Time counting is interrupted when the power is turned back and resumed after its removal. With relays that have multiple pairs of contacts, if there are no other conditions, then the operating time is the time. The device that forces the terminal to move, is actually an electromagnet! To find relay operating time from time dial settings and plug. ② the operating times of the relays are displayed. First, we can overdrive the relay.
What is the operation time of general purpose relay?

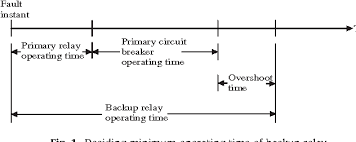

Grading time of relay = ((2xrelay error)+ct error)xtms+ over shoot+ cb interrupting time+ safety. The device that forces the terminal to move, is actually an electromagnet! • the mode of operation of the relay, in the main interface (when the module is powered on, flashes time range (corresponding time of 0.1 seconds to 999 minutes); To find relay operating time from time dial settings and plug. To function, time rang and operating. Sgp309 numerical on operating time of idmt relays подробнее. A relay is an electrically operated switch. Display is selected, they are relative to cursor 0. So by varying the point of saturation different overcurrent relay. Actual operating time of relay (t>) = operating time of relay x tms =2.17 x 0.125 =0.271 sec. ② the operating times of the relays are displayed. Setting multiplier fuzzy logic is used. Disabling the relay going after a specified time after the removal of the supply voltage.
